Product Model
VA4U1100

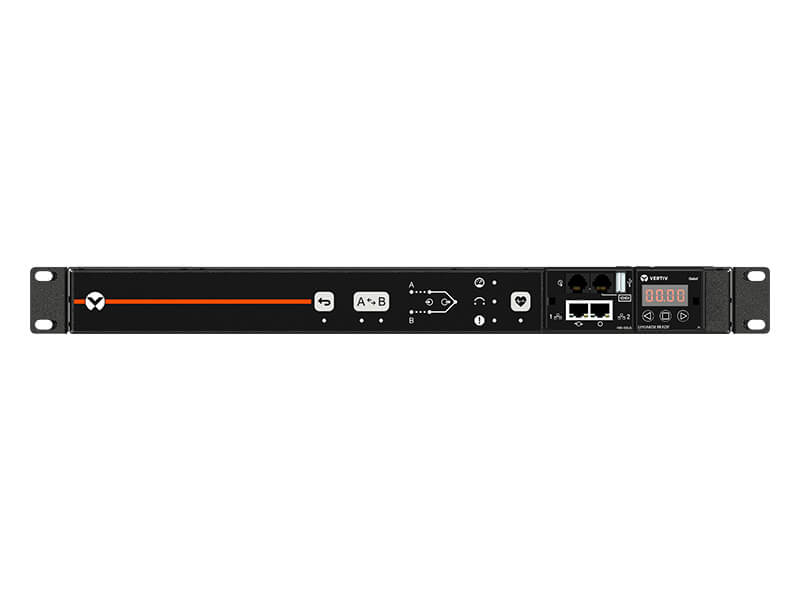

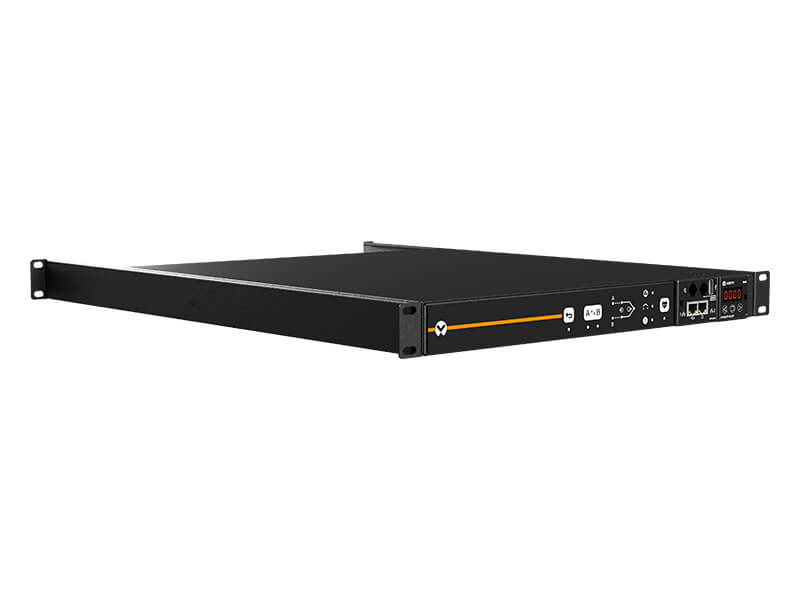

VA4U1100: The Vertiv™ Geist™ RTS is a versatile rack power distribution unit (rPDU) with a transfer switch. This model is a 10A/15A, 120V/208V/230V single phase rPDU with 10 U-Lock C13 Outlets and a max power capacity of 1.4kW/2.4kW/2.3kW.
RACK TRANSFER SWITCH: The RTS allows IT equipment to remain powered in the event of a sudden outage or planned maintenance. It quickly detects power loss from the main source and automatically switches to the alternative source in less than 4-8 milliseconds.
REMOTE MONITORING: Analyze your rPDU’s distribution data and environmental status through any web browser or serial connection so you can help ensure your PDU is working as efficient and as secure as possible.
100% TESTED: All Vertiv™ Geist™ rPDUs are individually tested for functionality and meet local compliance requirements: TAA Compliance, RoHS, China RoHS, and UL.
THREE-YEAR WARRANTY: Extendable to five years if unit is registered within 120 days of purchase
Specifications
Technical Specifications
VA4U1100
- Product Overview
- Capacity
- 1.4kW (120V) or 2.4kW (208V) or 2.3kW (230V)
- Input Voltage
- 10A or 15A
- Output Voltage
- 100-240V
- Output Options

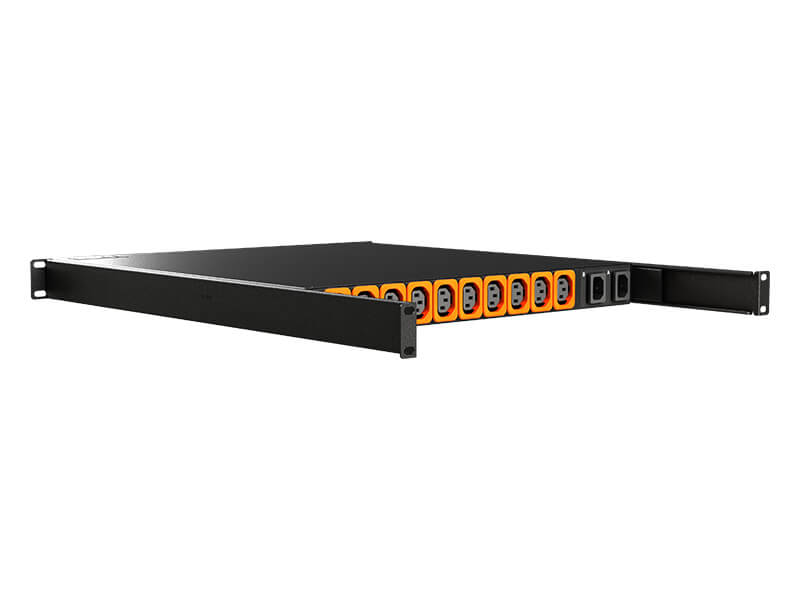

- (10) U-Lock IEC C13
- Location
- Rack
- Power Description
- Frequency
- 50/60Hz
- Interfaces/Ports
- Protocols
- DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
- Management
- Listings
- RoHS Compliant, CE Marked, Cم Mark, RCM Mark (EMC Only), FCC Part 15 Class A Conformance, UL Listed 62368, Complies IEC 62368-1, EN 55032 & EN 55024
- Operational Conditions
- Operating Temperature
- 60C / 140F
- Physical Characteristics
- Weight
- 15 lbs
- Weight
- 6.8 kgs
- Height
- 1.72 in
- Height
- 44 mm
- Width
- 17 in
- Width
- 432 mm
- Depth
- 18 in
- Depth
- 457 mm
Brochures and Data Sheets
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
VA4U1100
The Vertiv™ Geist™ Rack Transfer Switch (RTS) is a versatile rack power distribution (rPDU) that provides redundant power to single corded devices. The RTS automatically detects the loss of power and switches the load to the secondary power source in 4-8 milliseconds without the need for human intervention. It helps ensure your critical equipment remains powered even in the event of a power failure.
Warranty : Five-year warranty with registration; three-year standard warranty.
Benefits
Automatic detection of power loss
Reliable power switching
Upgradable Technology
Enhanced Intelligence
Features
Automatic Power loss detection
Predict overloads with real-time power usage metrics
Supports out of phase transfers
<4-8ms Transfer Speeds
Easy to use Front Panel Interface
Combination Outlet C13/C19
